43" LED Monitor
Product feature Product parameter Product size


Function introduction (automatic temperature monitoring function)


l 1. More pixel optional, support 4K &1080P signal input, suitable for 4K DVR or NVR use.
l 2. Automatically detect the resolution of the input signal in the upper right corner of the screen when it is turned on
l 3. Clear: Delicate and realistic, conveys true colors, and shows truly color.
l 4.Bright: The picture quality is improved, just for better presentation
l 5. Using industrial screen, high brightness, high contrast,
l 6. Adopt high-precision standard regulated power supply, specially designed for industrial equipment, support 24hrs x 365 days of uninterrupted work
l 7. It adopts semi-metal shell, strong structure, fire-proof, moisture-proof and shock-proof, especially suitable for equipment that is easily affected by electromagnetic interference.
l 8. Using 8bit image chip processing technology, high-pixel progressive scanning, the picture quality is exquisite
l 9. Supports intelligent 3D noise reduction, image removal, dynamic brightness, contrast and color optimization technology
l 10. Apply the world's leading LED driver solution to accurately restore the front-end signal, with a strong sense of reality
l 11. The liquid crystal has small size, low energy consumption, zero radiation, stable image, no effect on eyes, natural health
l 12.6ms ultra-fast response, avoiding the smearing phenomenon of the image in high-speed operation
l 13. Using nanotechnology, the picture is more three-dimensional and transparent



Product Parameters



Model#:WM-ND4300-S

Panel specification

Panel Size:43" TFT LED

Resolution:1920x1080(compatible with 4K signal input )

Aspect Ratio: 16:9

Brightness:300cd/m2

Contrast:3000:1

Visual angle:178/178°

Response Time:6ms

Color:16.7M(8-bit)

Input Interface

Video Input:RCA×3

VGA input:VGA×1

HDMI input:HDMI×1

USB port:USB×1

Audio:Built-in speaker

Operating environment

Working temperature:0℃~50℃

Storage temperature:-20℃~60℃

Working humidity:5%~90%

Power consumption

Power Supply:100V~240V AC

Power consumption:≤80W

Standby consumption:≤1W

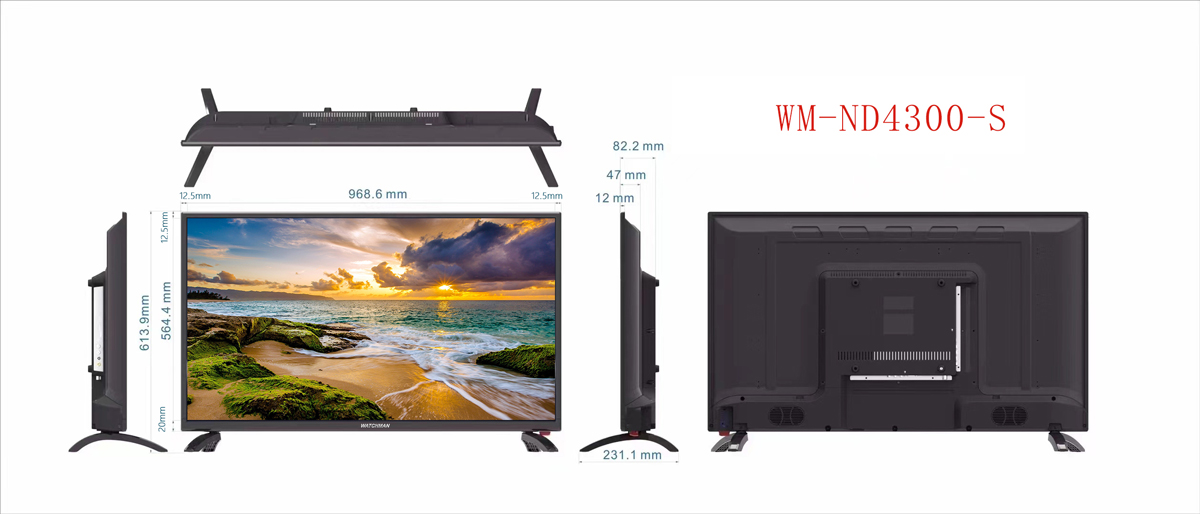

Dimension:968.6mm(W)×564.4mm(H)×82.2mm(D)

Net Weight:about 6.1KG


Industry Standards

Quality standard: China 3C certification, China energy saving certification, patent certificate, copyright, authoritative test report

Environmental standards:All components and packing accessories comply with international environmental standards

Installation method:Desktop base, wall mount, suspending mount

Wall mount hole:200x200mm

Menu language:Support Chinese, English, Spanish, French...more than 20 languages

Housing Color:Black

Housing Material:ABS;with remote control

Support HDMI audio, with stereo speakers




*Products will improve continuously, the data is for reference only, if there is any modification, the actual product shall prevail without prior notice
